產品說明
額定電壓：300V，額定溫度：80℃

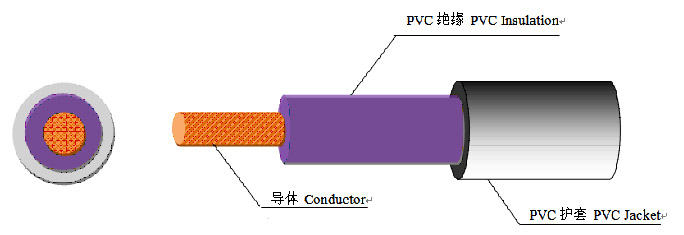

導體使用單根或絞線30-16AWG以上裸銅或鍍錫絲
PVC絕緣 護層厚度0.127至1.27mm
可通過UL VW-1及CSA FT1垂直耐燃試驗
應用適用于一般電子、電器設備內部連線
|
導體類型 Conductor Type |
導體 Conductor |
絕緣 Insulation |
最大導體電 阻 Max Resistance at 20℃ |
標 準 長 度Standard Length |
|||||
|
線規Spec |
線數/線徑 |
直徑 Dia. |
絕緣厚度 Primary Nom. Thick. |
標稱外徑 Nom.Dia. |
護層厚度Secondary Nom. Thick |
標稱 外徑Nom. Dia |
|||
|
AWG |
No./mm |
mm |
mm |
mm |
mm |
mm |
Ω/km |
Ft(M) |
|
|
絞合導體 Stranded Conductor |
30 |
7/0.10 |
0.30 |
0.38 |
1.12 |
0.38 |
1.92 |
354.24 |
2000 |
|
28 |
7/0.127 |
0.38 |
0.38 |
1.20 |
0.38 |
2.00 |
223.75 |
||
|
26 |
7/0.16 |
0.48 |
0.38 |
1.30 |
0.38 |
2.10 |
139.73 |
||
|
24 |
11/0.16 |
0.61 |
0.38 |
1.43 |
0.38 |
2.23 |
93.3 |
||
|
22 |
17/0.16 |
0.76 |
0.38 |
1.58 |
0.38 |
2.38 |
55.0 |
||
|
20 |
26/0.16 |
0.94 |
0.38 |
1.76 |
0.38 |
2.56 |
34.6 |
||
|
18 |
41/0.16 |
1.18 |
0.38 |
2.00 |
0.38 |
2.80 |
21.8 |
||
|
16 |
26/0.254 |
1.49 |
0.38 |
2.35 |
0.38 |
3.11 |
13.7 |
1000 |
|
|
單根導體 Single Conductor
|
28 |
1/0.32 |
0.32 |
0.38 |
1.14 |
0.38 |
1.94 |
227.39 |
1500 |
|
26 |
1/0.404 |
0.404 |
0.38 |
1.22 |
0.38 |
2.02 |
142.79 |
||
|
24 |
1/0.511 |
0.511 |
0.38 |
1.33 |
0.38 |
2.13 |
89.39 |
||
|
22 |
1/0.643 |
0.643 |
0.38 |
1.46 |
0.38 |
2.26 |
54.3 |
||
|
20 |
1/0.813 |
0.813 |
0.38 |
1.63 |
0.38 |
2.43 |
33.9 |
||
|
18 |
1/1.024 |
1.024 |
0.38 |
1.84 |
0.38 |
2.64 |
21.4 |
||
|
16 |
1/1.29 |
1.29 |
0.38 |
2.11 |
0.38 |
2.91 |
13.5 |
||
